Recommending High-Sensitivity Automatic Conveyor Needle Detector

December 28,2020

Automatic conveyor needle detectors are wide used in industries that need to detect ferromagnetic metal impurities. A high sensitivity needle detector is worth to owning, Shanan provides you with a hot device of SA-710K.

High sensitivity small needle detector for clothing, shoes, hats, luggage, toys, children's clothes, underwear, bedding

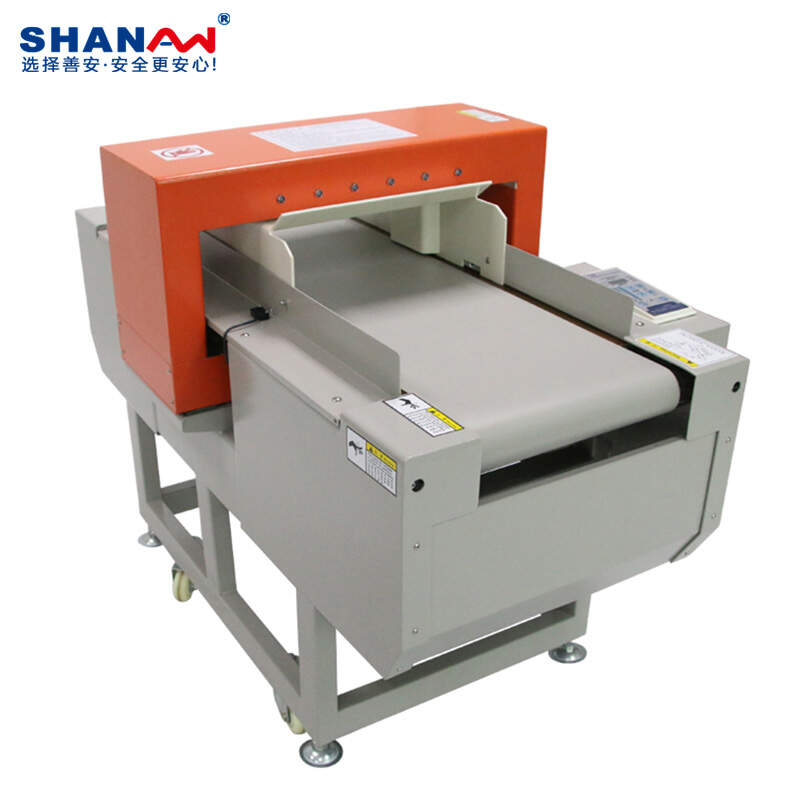

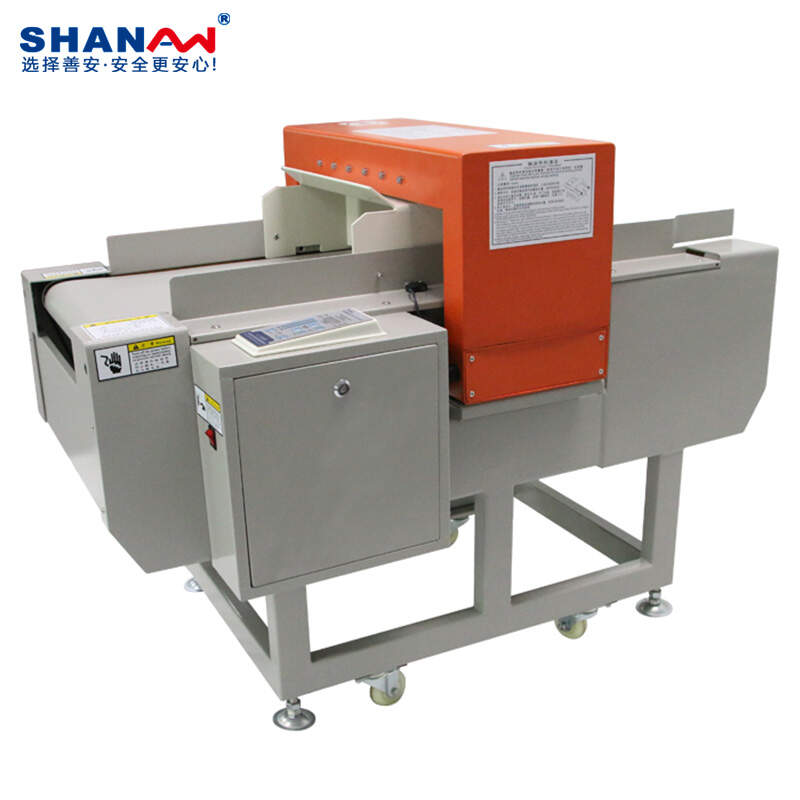

Automatic conveyor needle detector  Automatic conveyor needle detector


Applicable:

It can be used for clothing, baby products, knit goods, underwear, hardware buttons, zippers, socks ,non-woven fabrics, embroideries, kimono, beddings, towels, carpets, gloves, toys and handicrafts, etc.

SA-710K Features:

● Mechanism exported from Japan, conveyor belt exported from Holland, non-toxic, new coil technology, computer chip integration adopt digital circuit.
●Specially has the protection circuit, it will auto-stop if no detection goods in 10 minutes, Ad Hoc lightning protection circuit leak.
●All the function keys are touching-type keys,8 locations can display the accurate position of broken needle
●3 ways to alarm: sound, light, and frequency
●Open all of the features set the total power; the motor does not start before the completion of.
●Can calculate the qualified and unqualified and unqualified amount
●Have B/C (accessories/ products) mode switching function, adapt to different products, needle inspection operation.
●Strong anti-disturbance (no wrong alarm to the ceiling fan, mobile phones, screwdrivers, etc )

●Pipelined appearance, ABS shell, steel structure, first-class baking process, to ensure the detection of the machine stability ,good performance, long service life.

●With light control automatic alarm, detection of broken needle, sound and light, dual simultaneous alarm, the conveyor belt stops and automatically returns

●CE-certified brand-name high-reliability switching power supply, which can effectively resist interference on the power line, has an environmentally friendly automatic switch mode, and an intelligent operating switch design.


Product Parameters

 MODEL

SA-710K

Detection method

Magnetic field induction, digital circuit

Detection ability

≥FeΦ0.8 mm

≥FeΦ1.0 mm

≥FeΦ1.2 mm

≥FeΦ1.5mm

DetectionHeight

120mm

150mm

200mm

250mm

Detection width

Net width 600mm-non-standard sizes(custom)

Detection adjustment

Touch buttons adjust the level 0-100

Alarm method

Sound/light alarm and return, then restarts again

Power supply

Ac220V 50-60Hz

Pated output

100W

Dunension

L1330mm×W680mm×H990mm

Weight

180KG
